20 ch combiner system

Transmitter combiners

Combilent provides both cavity combiners and hybrid combiners as well as full combiner/receiver multicoupler systems.

Filters / Duplexers

Combilent offers custom design filters: high power transmit filters, receive filters, and duplexers.

TMA /TTA

Combilent offers Tower Mounted Amplifiers (TMA) / Tower Top Amplifiers (TTA) and the associated RMC for control and distribution to the receivers.

The Combilent TMA/TTA is small, has low noise figure, and low weight.

Receive Multi Coupler

Combilent offers Receive Multi Couplers (RMC) with integrated Rx-filter and low noise/high linerity amplifier.

Monitoring

Combilents monitoring products are:

  • Composite Power Monitor
  • Frequency Selective Power Monitor
  • Receive Line Monitor

The monitor can be stand-alone or integrated with combiners, Tx-filters and duplexers.



Miscellaneous

Combilent offer racking of the combiner system including combiner, filters and monitoring.

20 ch combiner system

  • System design
  • Technical description
  • Block diagrams
  • Rack layouts
  • Complete system test data

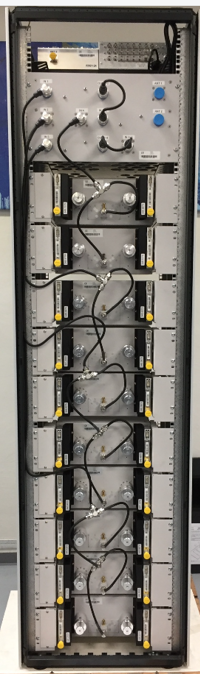

  • Picture shows a racking solution for a 20 ch UHF combiner / RMC system
